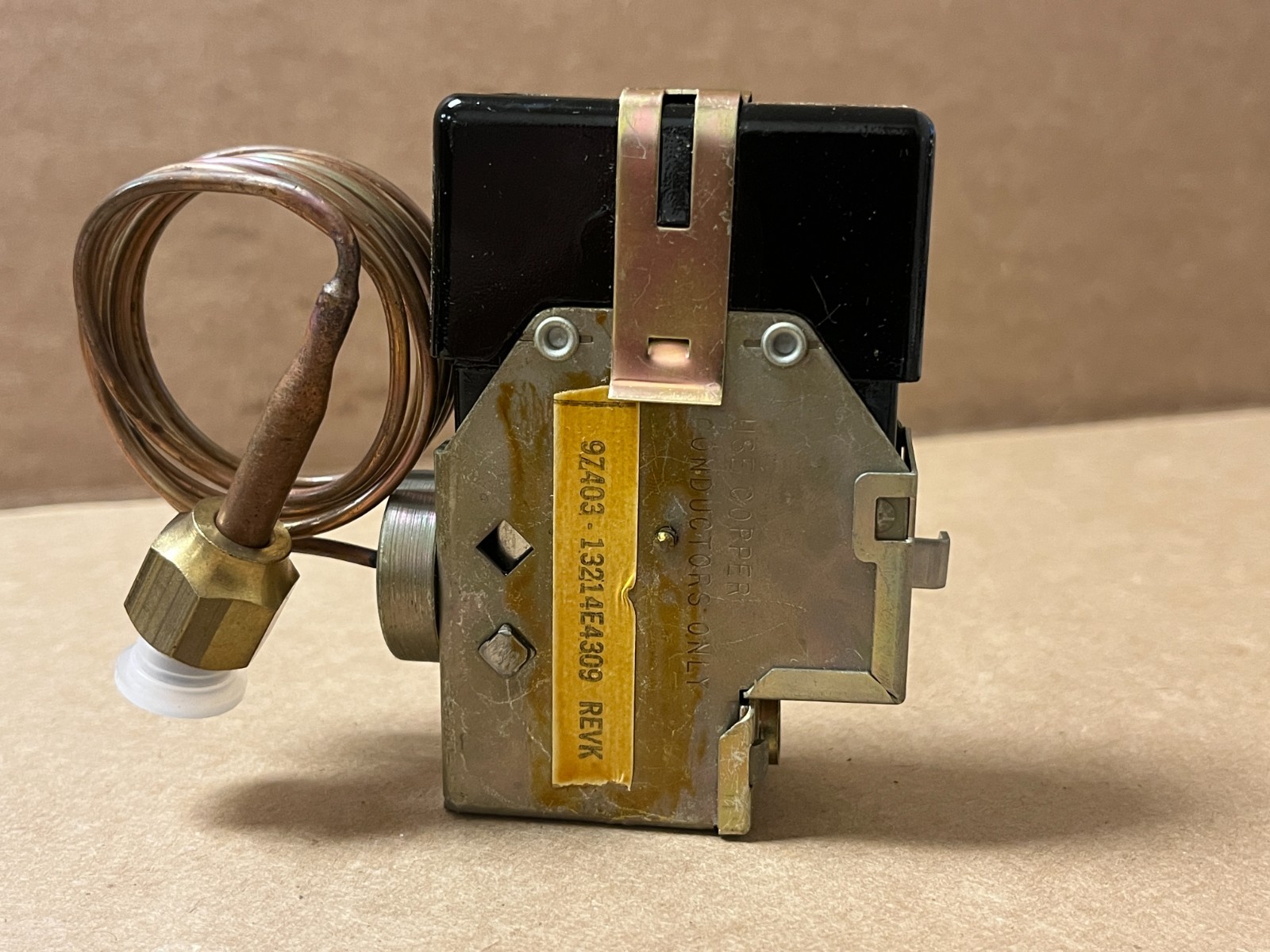

Johnson Controls Pressure Switch P/N 13214E4309 New For Sale

Johnson Controls Pressure Switch P/N 13214E4309 New
When you click on links to various merchants on this site and make a purchase, this can result in this site earning a commission. Affiliate programs and affiliations include, but are not limited to, the eBay Partner Network.

Buy Now

Johnson Controls Pressure Switch P/N 13214E4309 New:
$125.00

Buyer receives 1 eachJohnson Controls Pressure Switch P/N 13214E4309 New Surplus. Please contact with any questions.
Technical Data | NSN DESIGNATOR28 RECTANGULAROVERALL LENGTH3.340 INCHES NOMINALOVERALL HEIGHT1.125 INCHES MAXIMUMOVERALL WIDTH2.200 INCHES NOMINALBODY LENGTH2.640 INCHES NOMINALPRESSURE SWITCH TYPEGAGENONPILE-UP CONTACT ARRANGEMENT1 POLE, DOUBLE THROW, ONE POSITION MOMENTARYCONTACT ACTION STIMULUSINCREASECONTACT ADJUSTABILITYDEACTUATION POINT NOT ADJUSTABLE AND ACTUATION POINT NOT ADJUSTABLECONTACT STIMULUS RATING7.00 ACTUATION POINT NOMINAL POUNDS PER SQUARE INCH GAGE AND -5.00 DEACTUATION POINT NOMINAL POUNDS PER SQUARE INCH GAGE AND 12.00 DIFFERENTIAL POINT NOMINAL POUNDS PER SQUARE INCH GAGECONTACT VOLTAGE RATING IN VOLTS120.0 AC AT SEA LEVEL FIRST VOLTAGE 208.0 AC AT SEA LEVEL SECOND VOLTAGE 240.0 AC AT SEA LEVEL THIRD VOLTAGECONTACT LOAD CURRENT RATING16.0 AMPERES RESISTIVE LOAD FIRST VOLTAGE 9.2 AMPERES RESISTIVE LOAD SECOND VOLTAGE 8.0 AMPERES RESISTIVE LOAD THIRD VOLTAGEMEDIA FOR WHICH DESIGNEDGAS OR LIQUIDPRESSURE CONNECTOR TYPEFLARE, THREADED INTERNAL SINGLE CONNECTIONINSIDE DIAMETER0.138 INCHES NOMINAL SINGLE CONNECTIONTERMINAL TYPETAB W/SCREWMOUNTING METHODBASE AND THREADED HOLEMOUNTING FACILITY PATTERNTWO POSITION IN-LINEDISTANCE BETWEEN MOUNTING FACILITY CENTERS0.688 INCHES NOMINALTHREAD SERIES DESIGNATORUNC ALL THREADED HOLENOMINAL THREAD SIZE0.138 INCHES ALL THREADED HOLETHREAD CLASS2B ALL THREADED HOLETHREAD QUANTITY PER INCH32 ALL THREADED HOLEFEATURES PROVIDEDCAPILLARY TUBE END SEAL CONNECTIONBIN2088
